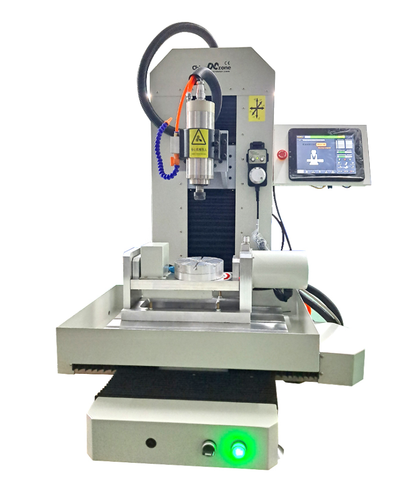

CNC 5 axis 2.2KW Steel structure 3040 Router Engraving Milling/Cutting Machine RTCP with Built-in computer for metals
Brand Name: cnczone
Origin: CN(Origin)
Certification: CE
Condition: New
Model Number: CNC 5 axis Steel structure
CNC or Not: CNC
CNC or Not: CNC
Operating Voltage: AC110V/AC220V
Spindle motor: 2.2KW
5th axis or Not: YES
Carving speed: 0-2500mm/min (different materials differ)
Rotate speed: 0-24000PRM/min
Usage: Engraving, drilling, milling for personal use
Total weight: 290KG
Computer systerm: windows 10/8/7/xp
High accuracy Linear guide steel structure 5 axis CNC milling machine for hard metal mill
Highlights for steel frame 5axis 3040
- XYZ all linear guide, high precision work on metal.
- Steel machine frame, more stable, Stronger rigidity.
- A、B axis use Harmonic reducer, High processing progress.
- Higher precision work on aluminum, Cooper, stainless steel(accuracy≤05mm).
- Machine framefully enclosed structure design and was helpful to keep the accuracy of screw.
Working video on metals:
|
Effective working travel（3axis） |
400*300*400mm |
|
|
Effective working travel（5axis） |
200*200*200mm |
|
|

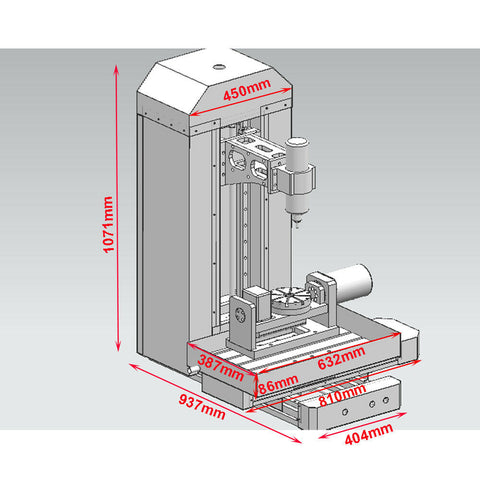

Shape dimension |
820*990*1100mm |
|
|
Working table dimension |
500*300mm |
|
|
Machine frame material |
45#steel |
|
|
Acceptable material size |
400*300mm |
|
|
Driving units |
X/Y/Z Axis SFU2005 Ball srew |
|
|
Sliding units |
X/Y/Z Axis HGH20 linear guide |
|
|
Control units |
Mach3: 5pcs independent 542 step drive + MK6-V XHC motion controller; DSP: Offline DSP HG709D system； RTCP:Ethernet six-axis motion control card IMC3062E support RTCP |
|
|
B/C axis Harmonic reducer |
B axis(Rotary axis) |
360degree |
|
|
C axis(Slope) |
90degree |
|
|
speed ratio |
B:1:120 C: 1:100 |
|
|
Maximum torque |
B: 145N.m C: 77N.m |
|
Step motor type |
57 two-phase four wire,2A 1.8N.m, 500rpm suggested |
|
|
|
58 two-phase four wire,3A 1.2N.m, 500rpm suggested |
|
|
Closed loop motor type |
XY axis 57-76 two-phase four wire,5A 2N.m |
|
|
|
Z axis 86-95 two-phase four wire,6A 6.5N.m |
|
|
|
AC 60-86 two-phase four wire,5A 3N.m |
|
|
Servo motor type |
XYBC axis 60 400W Rated torque: 1.27N.m, Peak torque: 3.81 |
|
|
|
Z axis 80 750W Rated torque: 2.39N.m, Peak torque: 7.17 |
|
|
Spindle motor |
Brand new 2200W water cooling spindle, 24000RPM |
|
|
Principal axis collet |
ER-20 1-13mm |
|
|
Repeat accuracy |
0.02~0.05mm |
|
|
Spindle precision |
radial beat accuracy 0.01 mm |
|
|
Operating system |
Newest Win10 and compatible with old version |
|
|
Maximum speed |
0-4000mm/min |
|
|
Computer connection |
Ethernet port/DSP( no need computer) |
|
|
Command code |
Tap、 nc 、ncc、 txt |
|
|
Safeguard |
Photoelectric limit |
|
|
Operating Voltage |
AC220V/110V |
|
|
Warranty |
1 Year |
|
|
Package size |
One wooden box, 98*107*125cm |
|
|
Gross weight |
285kg |
|
Samples:
Stainless steel:
Aluminum：
