RDC 8445S Ruida co2 laser controller system newest for co2 laser cutting engravng machine

Specification:

Compatible Lasers: CO2 glass tube, CO2 RF tube, UV, etc.
Supported Axes: 4
Laser Channels: 2
Dual-Head Interchange: Supported
Communication Interfaces: Ethernet, USB, Wi-Fi
Operation Panel: 5" True Color Screen + Keypad
Feeding Functions: U-axis feeding / YU-axis simultaneous feeding; Standard feeding / Oversized split feeding
Installation encryption: Supported
Onboard clock:Supported
Firmware Upgrade: Remote motherboard and panel program upgrade
Rotary Processing: Selectable Y/U-axis rotation modes
Engraving Functions: Flat engraving, slope engraving, grayscale engraving
Power-off resume: Supported
Software: RDWorksV8, RDPlug-in, Virtual Print, RDImage
Operating System: WinXP, Win7, Win8, Win10, Win11; 32-bit or 64-bit

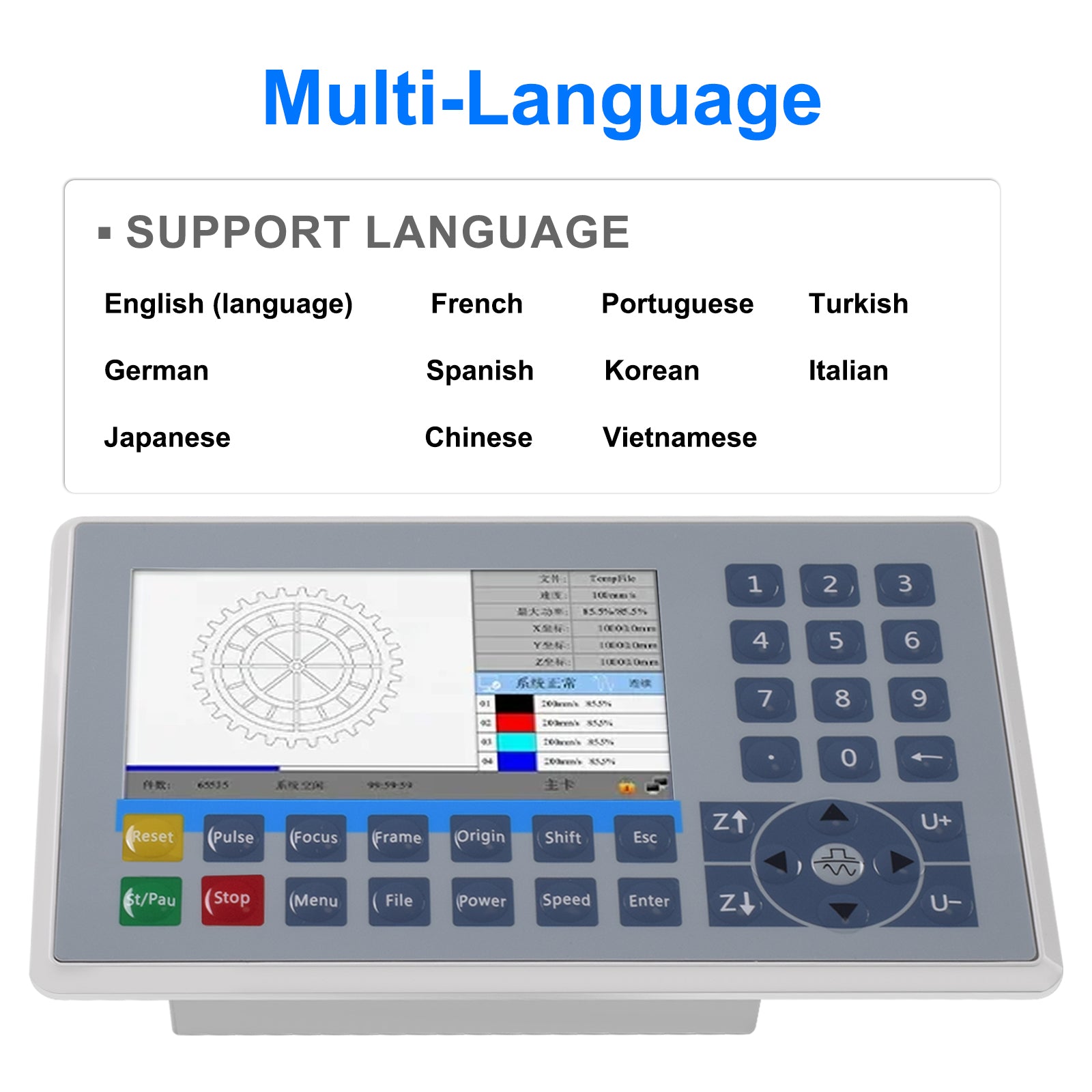

Supported Languages: Simplified Chinese, Traditional Chinese, English, French, Russian, Turkish, German, Spanish, Vietnamese, Korean, Italian, 11 languages

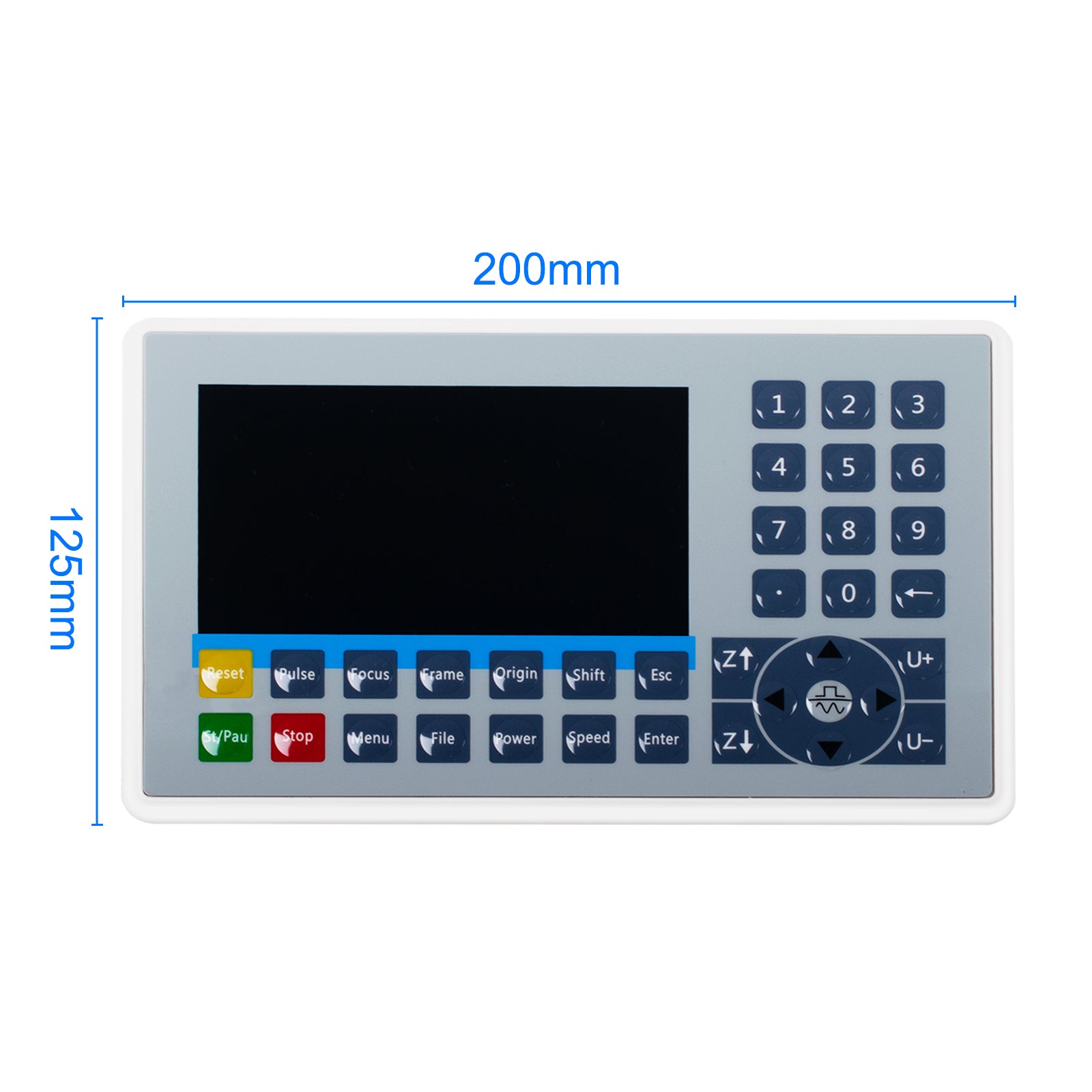

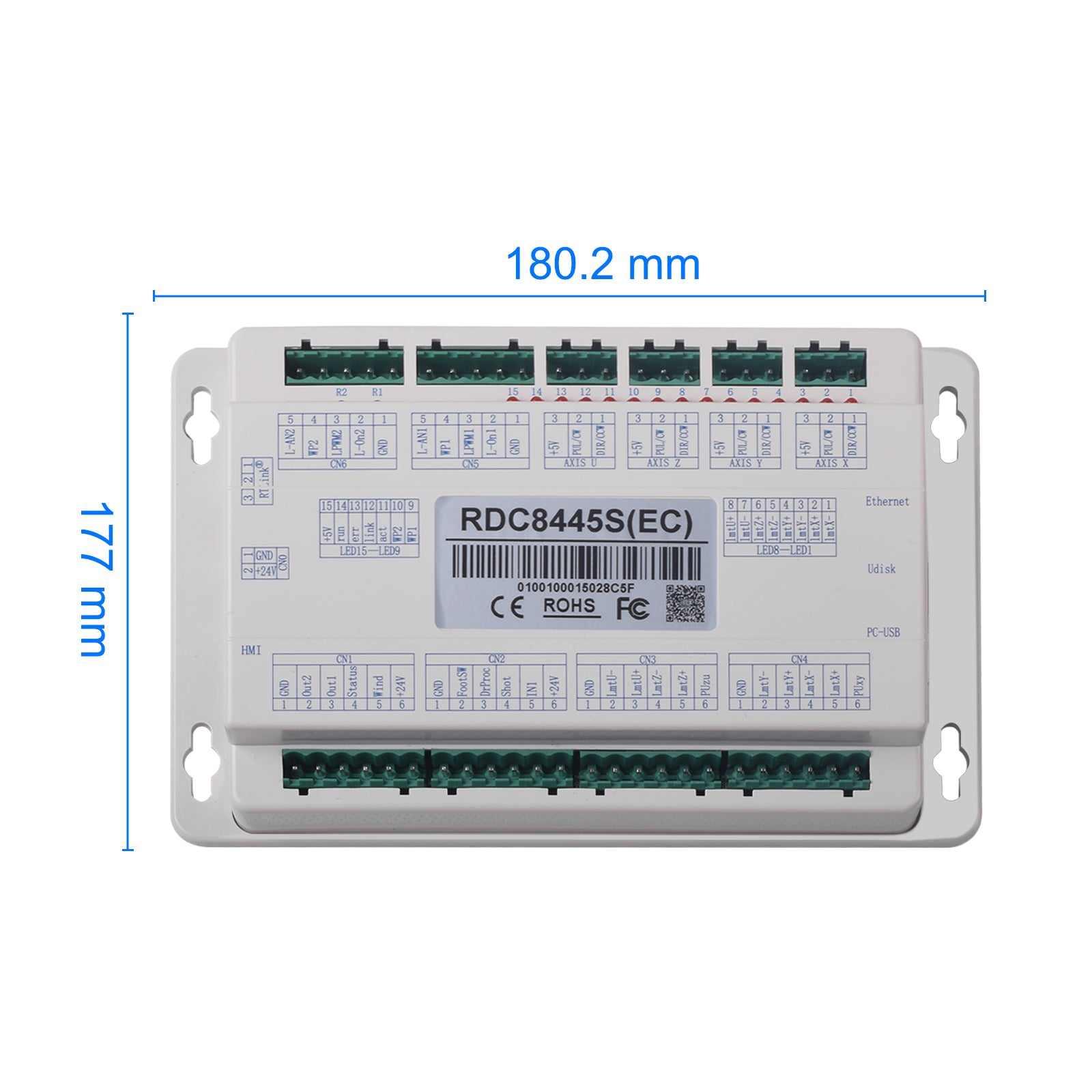

Dimensions: Panel: L199.5mm*W124.5mm*H42.1mm Mainboard: L180mm*W116.6mm*H33.1mm
Optional Accessories: Wireless Controller
Compatible App: Mantisolo; Operating System: Android 8.0 and above, iOS 12.0 and above
Web Application: Supports cross-platform control

Function Description
Supports control of up to four servo/stepper motors;
Supports one extended serial port for communication with the EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with a standard RS232 interface;
Supports four OC gate outputs, capable of directly driving 5V/24V relays;
Supports the new Ruida mobile app, allowing you to control the machine and edit graphics for processing directly within the app;
Supports dual-head electric inter-travel control and over-width split cutting;
Supports storage for up to 1200 processed files;
Supports file names up to 16 characters (16 numbers/English characters, 8 Chinese characters);
Supports Wi-Fi wireless transmission;
Supports the Ruida web application platform.
