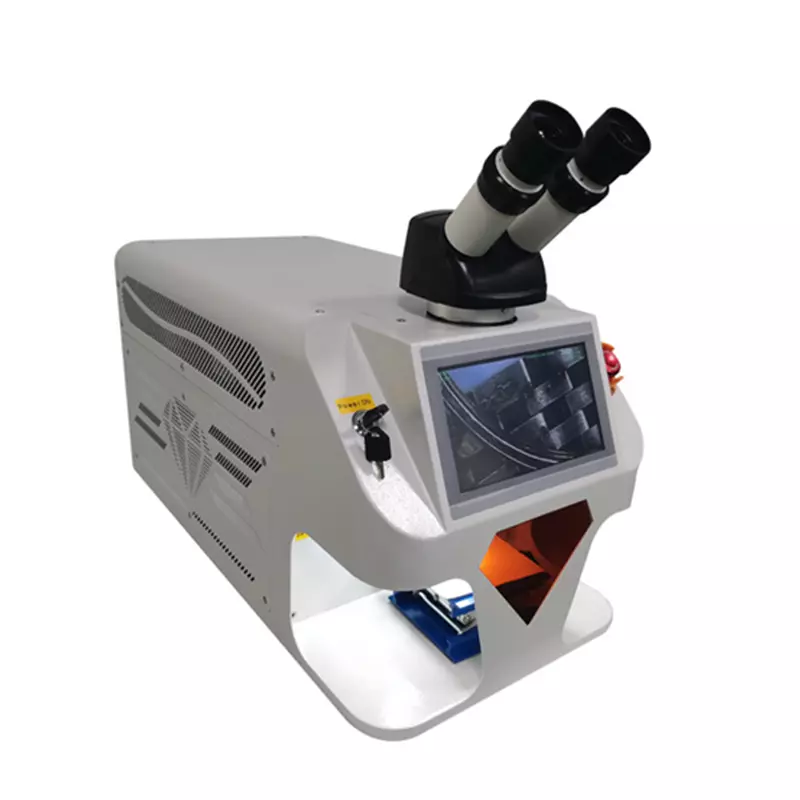

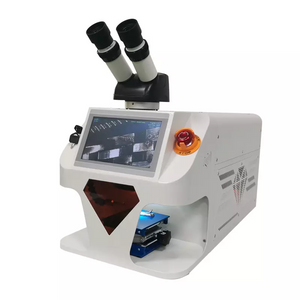

Mini laser jewelry welding machine metal spot welding machine with CCD system touch screen
Item specifics
-
Condition:
-
Laser Type: Nd.YAG
-
Impuls frequenz (HZ): ≤ 15
-
Laser Power: 60W-200W
-
Laser waveLength: 1064nm
-
Laser Power Supply: UET
-
Pump Soure: Xenon lamp
-
pulse Width: 0.3-5ms/10ms/10ms
-
Solder Joint Size: 0.2-3mm
-
Positioning way: reticle
-

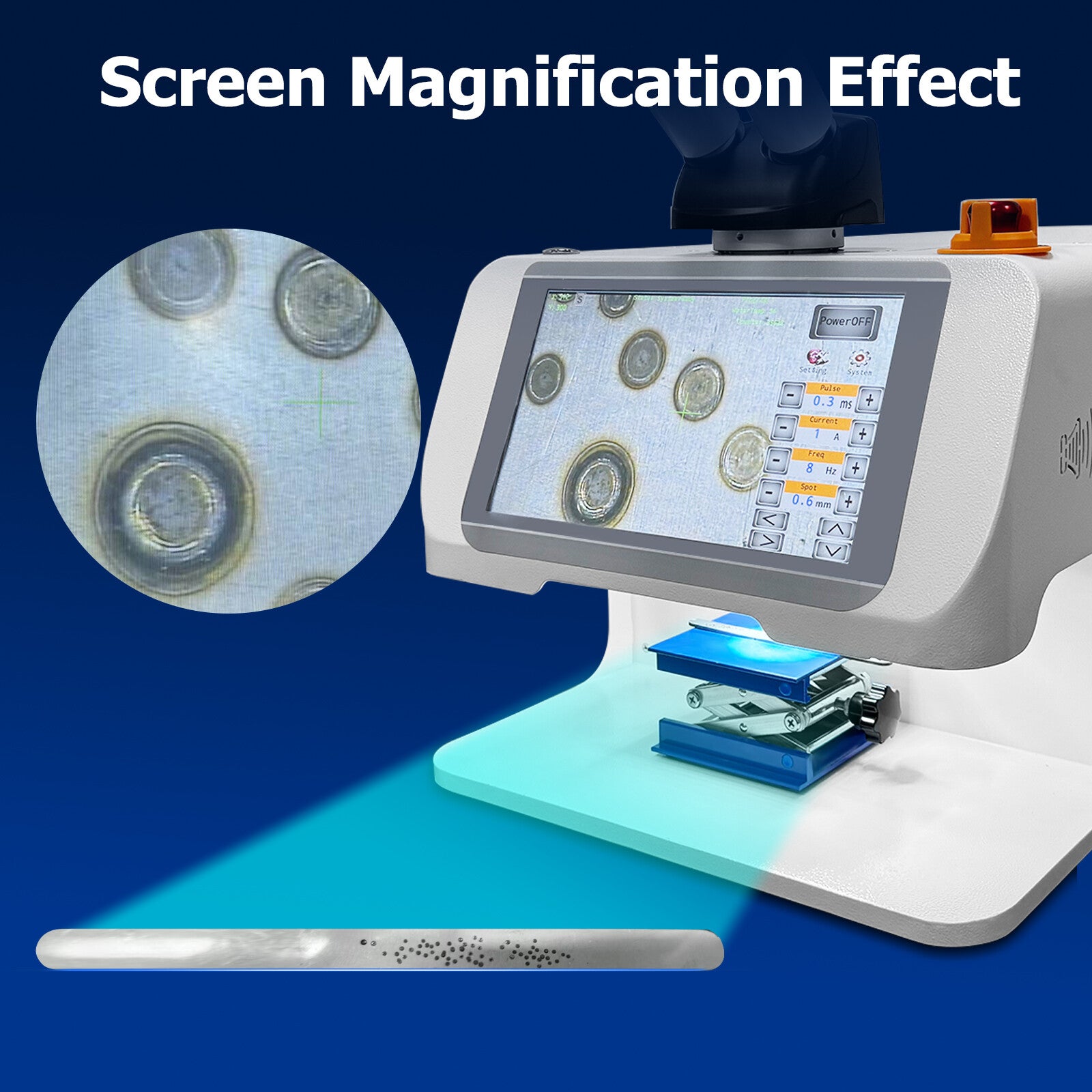

Visual system: Microscope&CCD
-
Max Weld Depth: 0.1-0.5mm
-
Cooling method: Small Chiller ( Built-in)
-
power systems: 3KVA/4KVA/5KVA
-
Weight: 32KG
-

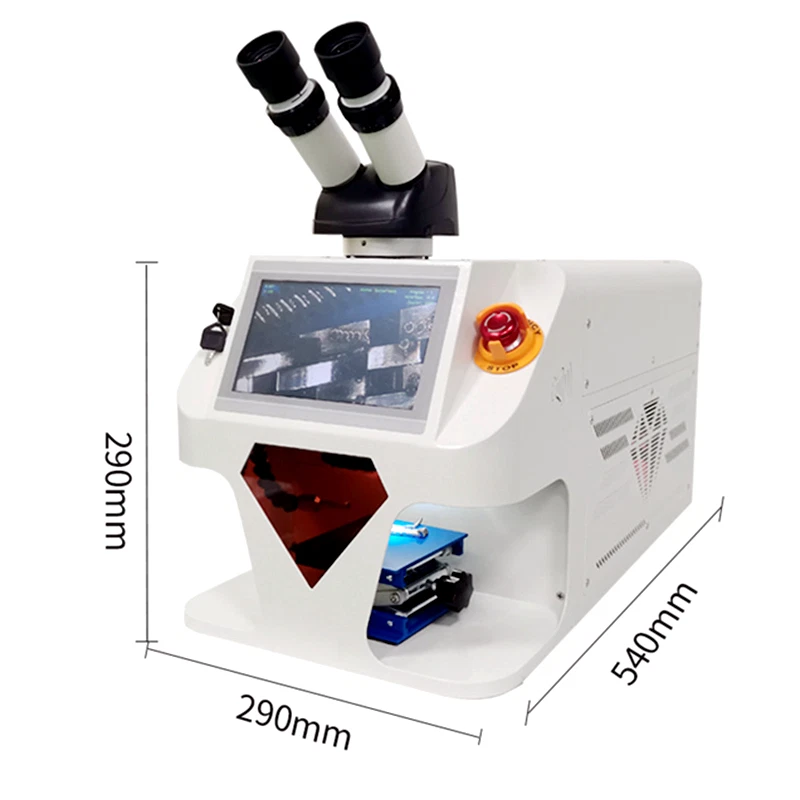

machine size: 540(L) x 290(W) x 290(H) mm
-
Brand: CNCZONE
-
Input Voltage: 220 V
