New 6 axis Wireless USB MPG Pendant Handwheel Mach3 for 5 Axis 4axis 3axis CNC Milling Router Engraving Machine

-Radio frequency: 433 MHz, ISM, the Tx power is 10DB and the RX sensitivity is 98DB. USB receiver 6 axes (X, Y, Z, A, B, C axis) with LCD display realtime display.

-Support 128*64 dot matrix input. Support 100PPR electronic hand wheel function.

-Support the 13 shortcut keys, the user is free to define the function.

-Wireless transmission distance of 40 meters. 64 channel frequency hopping -transmission, strong antiinterference, stable and reliable; the channel gap is 1 MHz.
Low power design, 2 AA battery for 1 months. Industrial grade design, dust proof design, stable and reliable.

-Applied to a variety of CNC systems, suitable for the use of the industry are: engraving machine industry, engraving and milling machine industry, CNC lathe industry, laser cutting machine industry, flame cutting machine industry, plasma cutting machine industry, automation production control industry.

Features:

The series of remote control, providing DLL library files for customers to carry out the 2 development, suitable for the customer's own a variety of numerical control system. The series of remote control, based on the WINDOWS system.

Product features:
-Radio frequency: 433 MHz, ISM, the Tx power is 10DB and the RX sensitivity is 98DB
-USB receiver 6 axes (X, Y, Z, A, B, C axis) with LCD display real-time display
-Support 128*64 dot matrix input
-Support 100PPR electronic hand wheel function.
-Support the 13 shortcut keys, the user is free to define the function
-Wireless transmission distance of 40 meters
-64 channel frequency hopping transmission, strong anti-interference, stable and reliable; the channel gap is 1 MHz
-Low power design, 2 AA battery for 1 months
-Industrial grade design, dust proof design, stable and reliable
-Applied to a variety of CNC systems, suitable for the use of the industry are: engraving machine industry, engraving and milling machine industry, CNC lathe industry, laser cutting machine industry, flame cutting machine industry, plasma cutting machine industry, automation production control industry.

Band switch function:
To control the various function of the hand wheel through the band switch.

Application:
For Windows: All Mach3 CNC

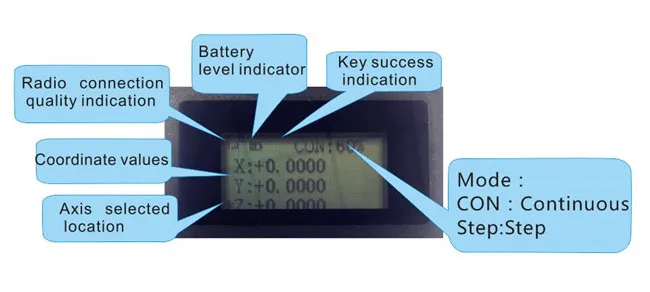

Explanation:

1.Key success indication: when you press the button, the receives the key value, the indicator flasher about, indicating successful key operation.

2.Speed Indicator: when the band switch to select 1X,10X,100X,1000X,the LCD display value:0.001,0.01,0.1,MPG.

3.Axis selected location: Axis selection switch position, LCD display axis selected. X:X workpiece coordinate axis,1X:X axis mechanical coordinate.

Package Include:
1x 6 Axis Wireless Mach3 MPG Pendant CNC Handwheel.
1x wireless receiver
1x protection case
1x English Instruction
1x CD
