Stepper Motor Driver M542 50V 4.2A 128M for CNC Engraver machine 42/57 Motor

Stepper Motor Driver M542 50V 4.2A 128M for CNC Engraver machine 42/57 Motor

  • $96.00

Brand Name: cnczone
Model Number: M542 Driver Board
Motor Type: Stepper Motor
Voltage: 24-50V
Recommend : 36V
Current: 1.0-4.2A
Microstep: 2-128M
Original: China


Stepper Motor Driver M542 CNC Stepping Motor Driver Board Stepper Driver M542 50V 4.2A 128M for CNC Engraver machine 42/57 Motor


 Introduction :

M542 is a  type of two-phase hybrid stepping motor driver, The drive voltage of which is from 20VDC to 50VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 42mm to 86mm outside diameter and less than 4.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Hording torque when M542 run under high speed is also significantly higher than the other two-phase driver, what‘s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, Computer embroider machine, packing machines and so on.

 Features :

    High performance, cost-effective
    Supply voltage up to +50 VDC
    Output current up to 4.2A
    Self-adjustment technology
    Pure-sinusoidal current control technology
    Pulse input frequency up to 300 KHz
    TTL compatible and optically isolated input
    Automatic idle-current reduction
    15 selectable resolutions in decimal and binary, up to 25,600 steps/rev
    Suitable for 2-phase and 4-phase motors
    Support PUL/DIR and CW/CCW modes
    Short-voltage, over-voltage, over-current protections


 Introduction :

The M542 V2.0 is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors.

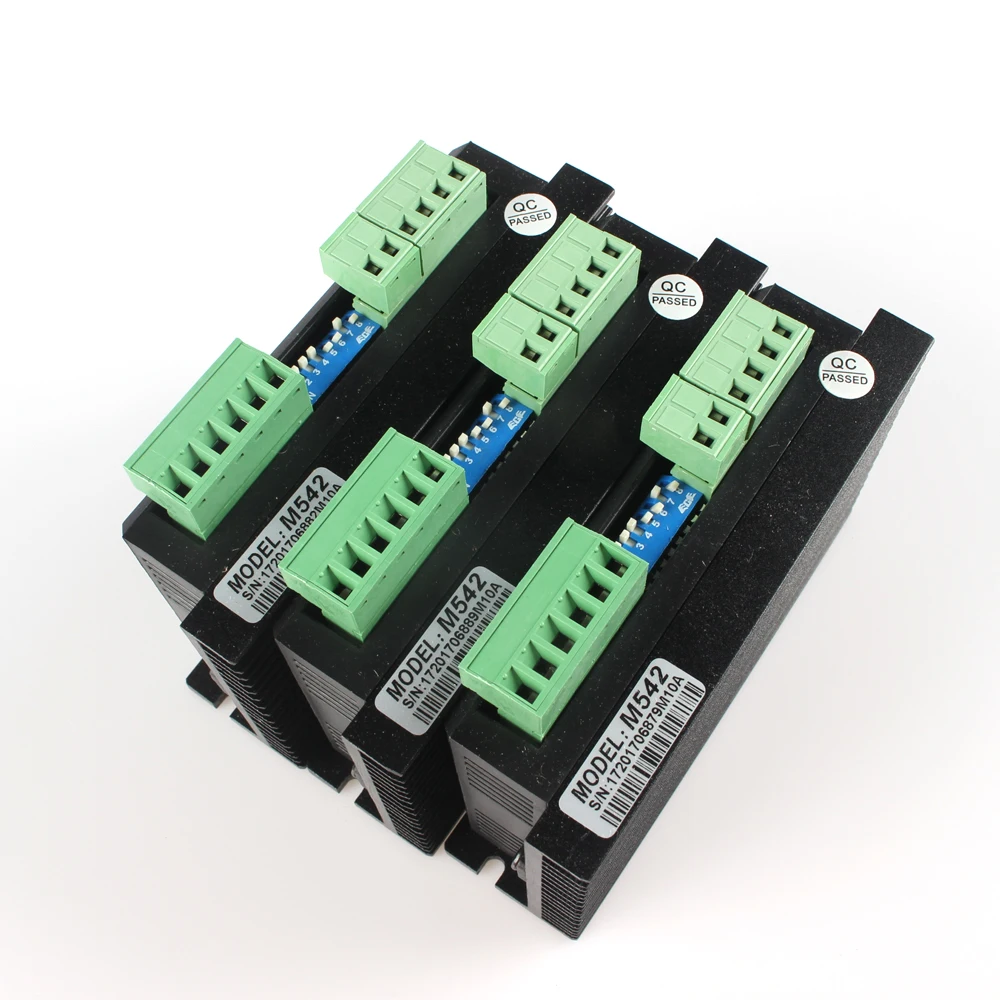

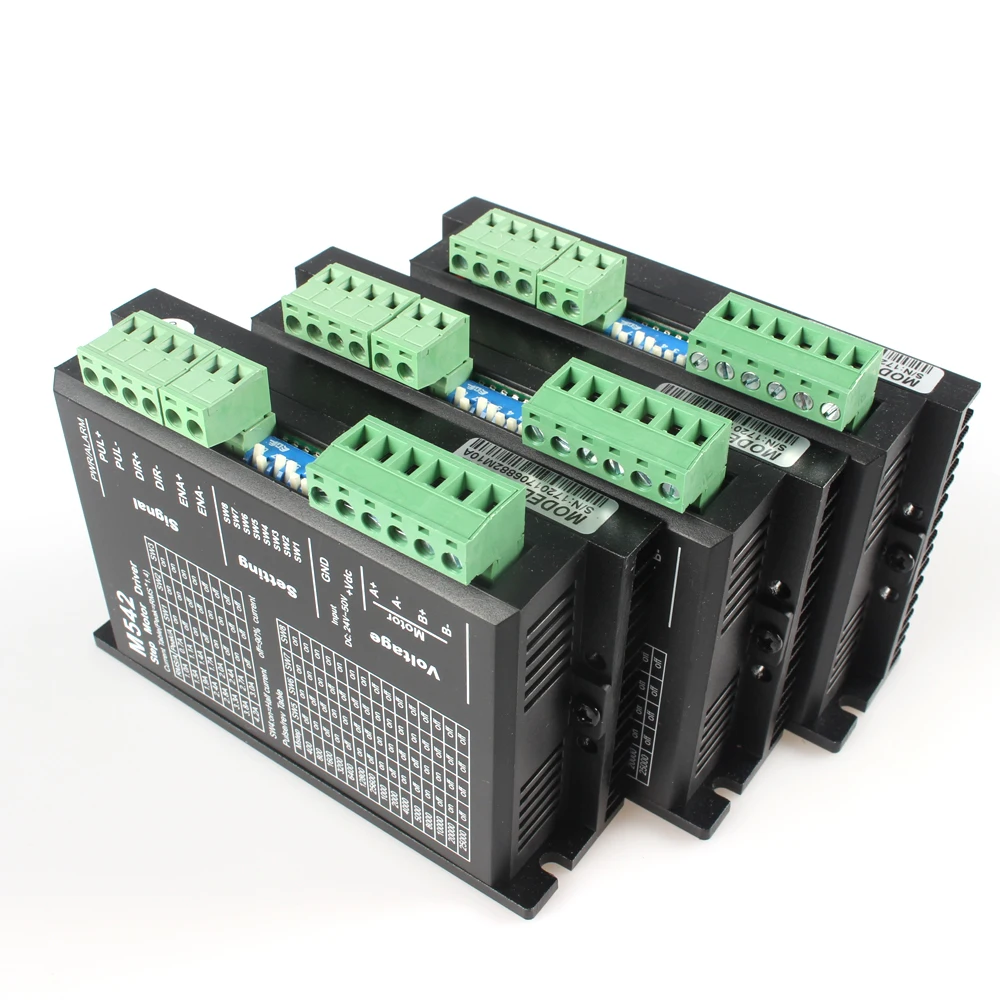

3 * M542 Driver Board
